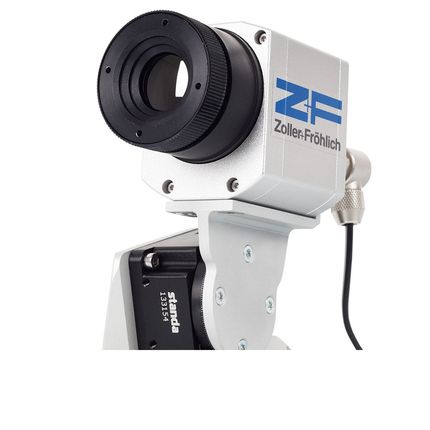

Z+F T-Cam 5016

$17,000.00 USD

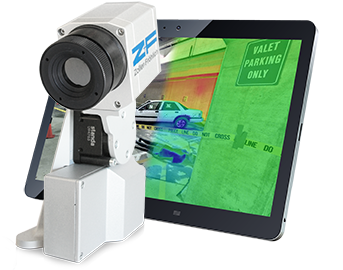

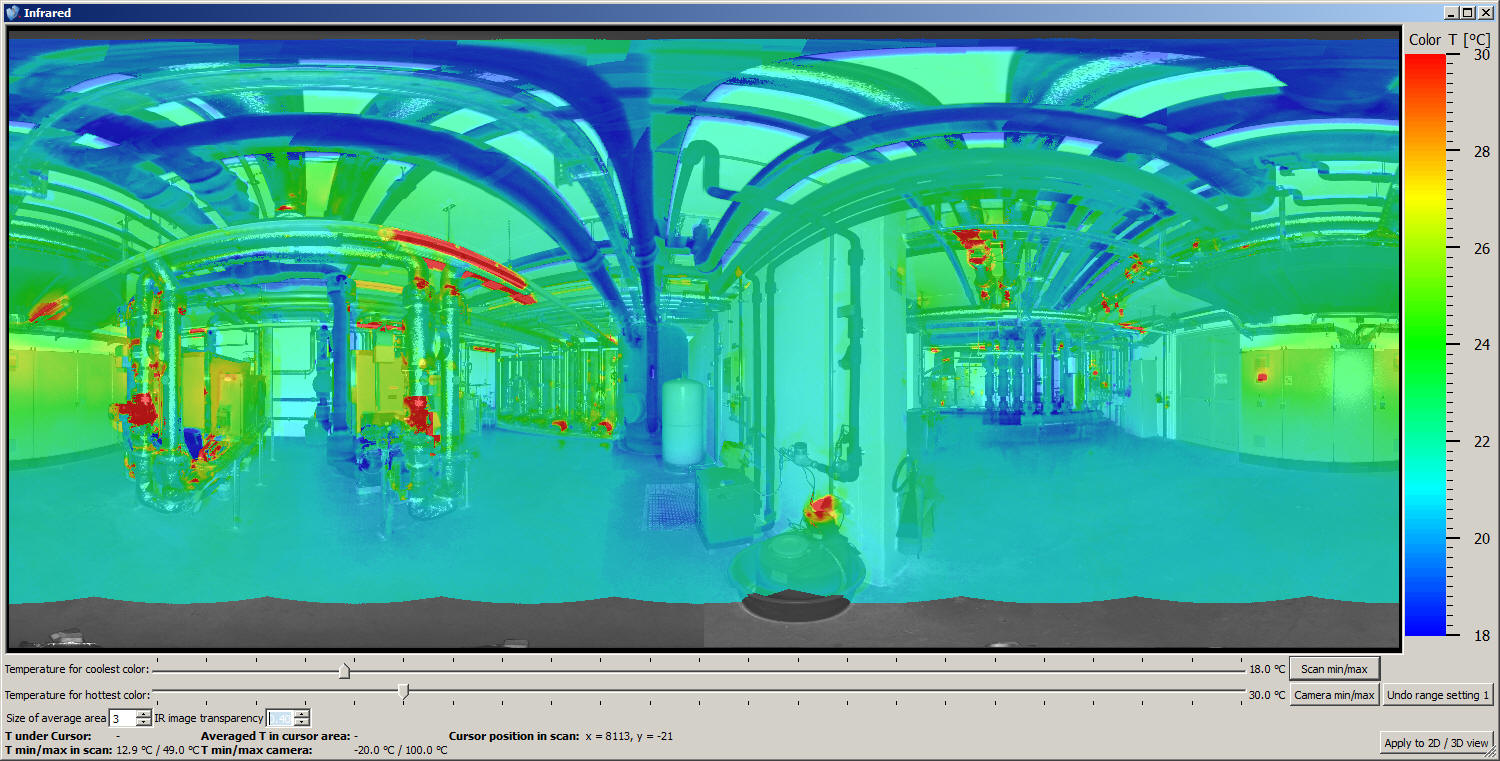

The T-Cam, thermal imaging camera designed to work with Z+F IMAGER 5010 and Z+F IMAGER 5016 scanners, allows for recording the thermal properties of rooms and objects. The camera creates 360-degree panoramas with 382 x 288 pixel resolution and automatically maps them to the point cloud.



SKU: ZF-V90LA000199-UP Category: Tags: , ,


The Z+F T-Cam is easy to assemble and can be connected to devices via the USB interface. The camera comes with a connection cable, cleaning set, and carrying case.

Technical Specifications

  • Resolution: 382 x 288 pixels
  • Lens field of view: 62 x 49 degrees
  • Field of view vertical: 284 degrees, field of view horizontal: 360 degrees
  • Infrared spectral range between 7.5 – 13 um
  • Thermal sensitivity 0.08 K
  • System accuracy +/- 2 degrees celcius
  • Panoramic recording time 1:45 min

Additional information

Weight 0.85 lbs
Dimensions 19.7 × 7.6 × 17.9 in
